¶ THMC3D
¶ Errors | Solution
-
I/O syntax error | check sim.out to find the parameter near break point, and check the next parameters' value format of SIM.inp
*full message :forrtl: severe (59): list-directed I/O syntax error, unit 1015, file *\SIM.inp -
DTI | .MXA.par20.1 >=1
full message : -
PROPF | ckeck # of material <-> .MXA.par5.1
full message : forrtl: servere (408): fort: (10): Subscript #2 of the array PROPF has valueXwhich is greater than the upper bound ofY -
ITMPRY | ckeck # of time steps <-> .MXA.par4.1, for steady please set NTIPRT=0, NTISTO= 1, ITMSTO(I)=1
full messages : forrtl: severe (408): fort: (10): Subscript #1 of the array ITMPRY has valueXwhich is greater than the upper bound ofY -
HDBF | check setting of DataSet 19 : DIRICHLET B.C. FOR FLOW
full messages : forrtl: severe (408): fort: (11): Subscript #1 of the array HDBF has valueXwhich is less than the lower bound ofY -
IWKW | check setting of DataSet 26: WELL (POINT) SOURCE/SINK FOR TRANSPORT
full messages : forrtl: severe (408): fort: (11): Subscript #1 of the array IWKW has valueXwhich is less than the lower bound ofY -
XZX | NNP equal 0, try import Mesh again
*full messages : forrtl: severe (408): fort: (11): Subscript #1 of the array XZX has value 1 which is greater than the upper bound of 0 * -
CP | check setting of DataSet 24: INPUT FOR INITIAL OR PRE INITIAL CONDITIONS FOR TRANSPORT
full messages : forrtl: severe (408): fort: (10): Subscript #2 of the array CP has valueXwhich is greater than the upper bound ofY -
IDATX | check setting of DataSet 24: INPUT FOR INITIAL OR PRE INITIAL CONDITIONS FOR TRANSPORT
full messages : forrtl: severe (59): list-directed I/O syntax error, unit 1015, file -
IWTYP | check Flow Rate Profile and Water Density setting of DataSet 26: WELL(POINT) SOURCE/SINK FOR TRANSPORT
*full messages : An ERROR occured during READ_SEQUENCE!
Failure while reading IWTYP in File No.1015
Data No.00000007 is missing
¶ THMC2D
¶ Errors | Solution
- DTI | .MXA.par19.1 >=1
full message :
¶ GMGUI
https://camrdawiki.ncu.edu.tw/platform/geometry/howTo
¶ PIGUI
¶ Errors | Solution
- Simulation Error| Actions as following steps
- Click
View/Advancedand run simulation again to see the Model running error message - Check the error message with FAQ or search keyword in wiki here
- Click
PIGI/Simulation/Simulation Log/Viewto open sim.out to find the model running break point.
¶ VISGUI
¶ Errors | Solution
- Paraview have data but can't see in the canvas| Change the View angle to -Z or others
- Convert successful but Paraview no data | Project folder path contains non-ASCII characters, for example chinese
- Convert successful but Paraview no data | Check if set environment variable

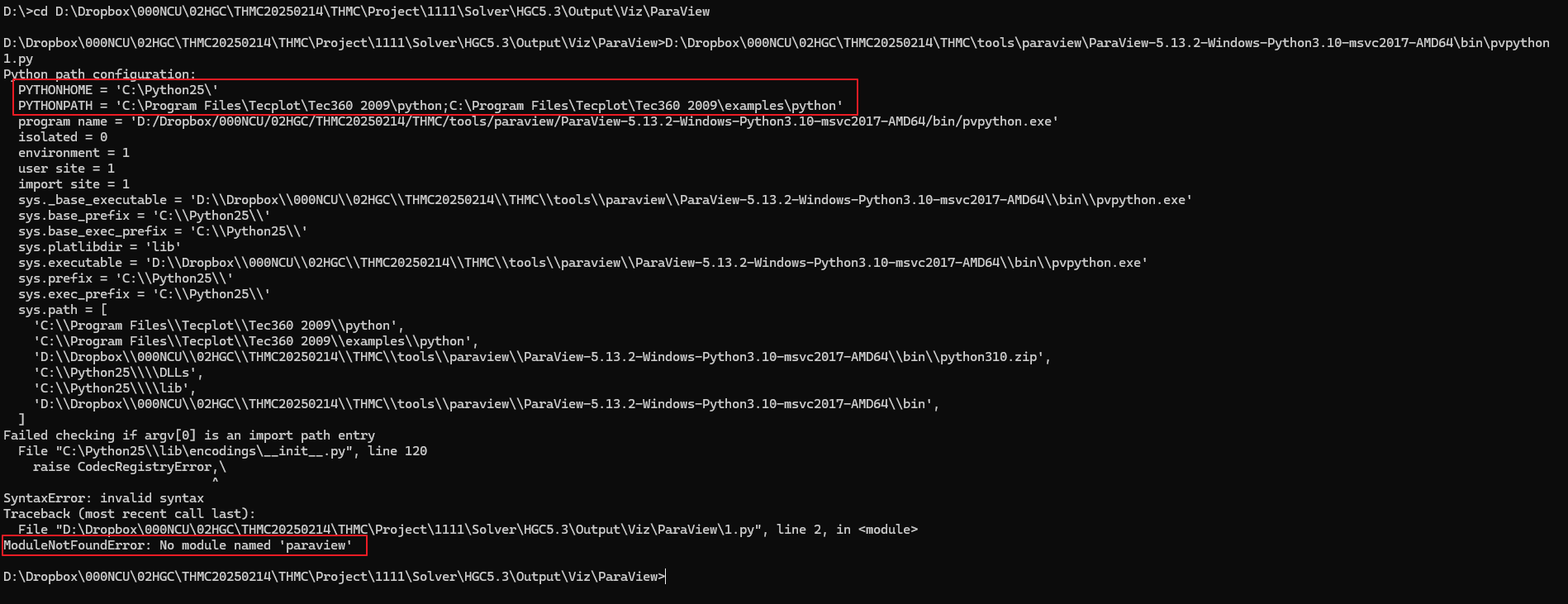

PYTHONPATH, it seems PYTHON2.X will cause importparaviewmodule failed. Remove it or insert paraview site-packages intoPYTHONPATH
